Send InquiryPP Box Type Flange Guard
Price 60.0 INR/ Piece
MOQ : 10 Pieces
PP Box Type Flange Guard Specification
- Sealing Type
- Splash Protection (Non-sealing)
- Temperature Range
- -10C to +90C
- Tolerance
- 1 mm
- Flexibility
- High
- Yield Strength
- 30 MPa
- Diameter
- As per flange specification
- Tensile Strength
- 35 MPa
- Bend Radius
- Flexible, conforms to flange corners
- Connection Type
- Adjustable Strap
- Product Type
- Flange Guard
- Material
- Polypropylene (PP)
- Connection
- Strap with Lock Mechanism
- Shape
- Box Type
- Standard
- Industrial Grade
- Surface Treatment
- Smooth
- Outer Diameter
- Customizable as per flange size
- Section Shape
- Rectangular
- Length
- Customizable
- Thickness
- Approx. 1-2 mm
- Color
- White/Translucent
- Usage
- Flange Leak Protection
- Rated Pressure
- Up to 25 Bar
- Material Grade
- Virgin PP
- Application
- Chemical, Water, Oil, and Gas Pipelines
- Fire Retardancy
- Non-flame propagating
- Reusability
- Reusable and removable
- UV Resistance
- Good
- Compliance
- Meets industrial safety standards
- Packaging Type
- Individual poly bag or bulk carton
- Weight
- Lightweight, easy to handle
- Corrosion Resistance
- Excellent (suitable for aggressive chemicals)
- Maintenance
- Zero maintenance, washable
- Installation Method
- Tool-free, easy wrap-around fit
- Markings
- Product identification and safety symbol printed
- Transparency
- Semi-transparent for visual inspection
PP Box Type Flange Guard Trade Information
- Minimum Order Quantity
- 10 Pieces
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 5000 Pieces Per Month
- Delivery Time
- 7 Days
- Main Domestic Market
- All India
About PP Box Type Flange Guard
PP Flange Guard (Polypropylene Flange Safety Shield)
PP Flange Guard is a safety device made from high-quality Polypropylene (PP) that is installed around pipeline flanges to contain hazardous spray-outs caused by gasket failure or flange leakage. It protects personnel, equipment, and the surrounding environment from corrosive chemicals such as acids, alkalis, and solvents.
Manufactured by APOLLO ENTERPRISE BOISAR, PP Flange Guards are widely used in chemical processing, pharmaceutical plants, fertilizer units, water treatment facilities, and petrochemical industries.
Product Features
- Manufactured from premium chemical-resistant Polypropylene (PP)
- Excellent resistance to acids, alkalis, and corrosive chemicals
- Lightweight yet strong and durable
- UV- and weather-resistant for outdoor applications
- Easy to install and remove without dismantling the flange
- Available in Box Type and Strip Type designs
- Reusable and low maintenance
- Suitable for standard ANSI, DIN, BS, and JIS flanges
- Custom sizes available on request
| Parameter | Details |
|---|---|
| Material | Polypropylene (PP) |
| Type | Box Type / Strip Type |
| Size Range | " to 48" (DN15 to DN1200) |
| Operating Temperature | Up to approximately 90C (application dependent) |
| Chemical Resistance | Excellent against most acids and alkalis |
| Color | Natural / White / Custom colors |
| Reusability | Yes |
| Standards | ANSI, DIN, BS, JIS |
Applications
- Chemical Industry
- Pharmaceutical Industry
- Petrochemical Industry
- Fertilizer Industry
- Water Treatment
- Textile Industry
- Food Processing
Benefits of PP Flange Guards
PP Flange Guards provide a cost-effective safety solution to prevent accidental chemical spray. In the event of a leak, the guard redirects the fluid and reduces the risk of injury, corrosion damage, and environmental contamination while helping facilities meet industrial safety requirements.

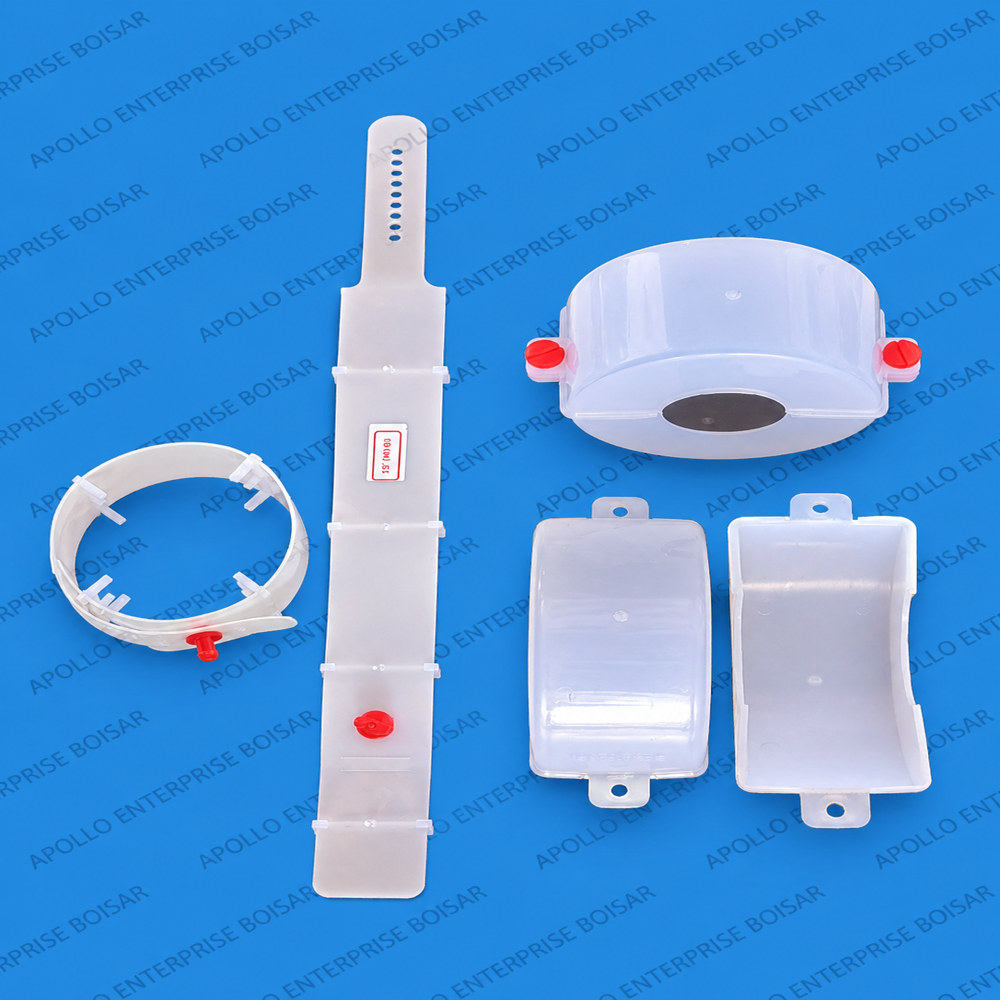

Available Types
PP Box Type Flange Guard
Fully enclosed rigid design offering maximum containment and excellent visibility.
PP Strip Type Flange Guard
Flexible wrap-around design for quick installation and economical protection.
